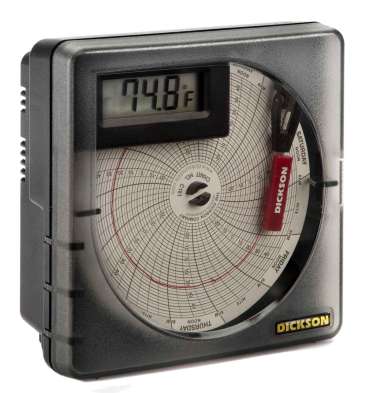

SL4 溫度圖表記錄 4″ (100mm) Temperature Chart Recorder

A great size coupled with 2-3 year battery life makes this 4-inch (101mm) temperature chart recorder a great solution for refrigerators, freezers and HVAC applications.
Digital Display
7-Day or 24-Hour recording
F/C Switchable
2-3 Year Battery Life
Specifications:
4″ Temperature Chart Recorder Specifications
Ambient Operating RH Conditions 0-95% RH non-condensing
Ambient Operating Temperature Conditions -22.0 to 122.0F (-30.0 to 50.0C)
Approvals CE
Battery Life (Avg) 3 Years
Calibration Options N100, N300, N400
Channels CH1: Temperature
Chart Rotation Speed 24 Hour or 7 Day
Dimensions 2.4 x 5.2 x 5.2in
Display Accuracy 1.8F
Display Dimensions 1.8 x 0.36in
Display Resolution 0.1
Display Type LCD
Enclosure Black ABS and Polycarbonate
Included Accessories “One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately"
IP Rating 21
Mounting Options Free Standing or Wall Mounted
Power Source Battery; One AA Battery (User Replaceable)
Response Time 11 Minutes to 63% of Full Scale (in air moving 5′ per second)
Temperature Accuracy ± 2% Of Full Scale
Temperature Range SL4350: -22.0 to 122.0F (-30.0 to 50.0C) SL4100: 0.0 to 100.0F (-18.0 to 37.0C)
Temperature Sensor Type Precise spiral wound bi-metallic strip transducer
Unit Weight 3 lbs
