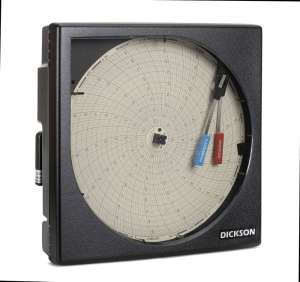

TH8P0 溫濕度圖表記錄 8″ (203mm) Temperature & Humidity Chart Recorder

TH8P0（配有現場可更換傳感器）是一種獨特的圖表記錄，它有一個完整的8“（203毫米）圖和電池供電，(203毫米)圖和電池操作使這是一個便攜式精密儀器。

8“圖表（203毫米）
電池操作
用戶可選擇的記錄時間和溫濕度範圍

Ambient Operating RH Conditions 0-95% RH non-condensing
Ambient Operating Temperature Conditions 32 to 120F (0 to 50C)
Approvals CE
Calibration Options N100, N300, N400
Channels CH1: Temperature, CH2: Humidity
Chart Rotation Speed 24 Hour or 7 Day
Dew Point Accuracy +/-3.6F from 30 to 95% RH (Calculated) (+/-2C from 30 to 95% RH (Calculated))
Dew Point Range 32 to 122F (0 to 50C)
Dimensions 3.1 x 9.2 x 9.2in
Display Resolution 0.1
Enclosure Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
Humidity Accuracy +/-2% RH from 0 to 60%; +/-3% RH from 60 to 95%
Humidity Range 0-95% RH non-condensing
Humidity Sensor Type Field Replaceable

IP Rating 20
Included Accessories Four AA Batteries, Red and Blue Pen and Quick Start Guide. *Charts sold separately.
Keypad Functions Power On/Off, Pen Home
Mounting Options Free Standing or Wall Mount (With Keyhole)
Power Source Battery; Four AA Batteries (User Replaceable)
Power Status Indicator LED Indicator
Remote Sensor Length Single 10 ft extension cable available (without sacrificing accuracy)
Response Time 5 Minutes to 63% of Full Scale
Temperature Accuracy +/-0.8F from 32 to 120F (+/-0.44C from 0 to 50C)
Temperature Range 32 to 120F (0 to 50C)
Unit Weight 4.6 lbs
Units/Pkg 1
