Excellent Technology Co.

TSB 輕觸式溫濕度記錄儀 Touch Sreen Temperature & Humidity Data Logger

易於使用，並允許用戶隨時隨地訪問歷史數據。

觸摸屏產品特點：

* 電容式觸摸液晶屏
* 可互換更換傳感器
* 用戶可選的採樣率
* 自定義報警
* USB閃存驅動器用於數據下載

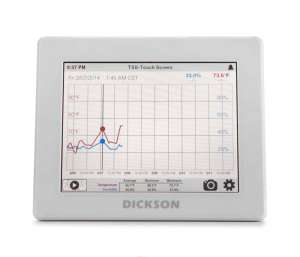

TSB Temperature & Humidity Data Logger

When we began designing our new line of Touchscreen data loggers, we started with some simple, yet lofty goals. We wanted to create a device that was feature heavy, easy to use, and allowed users to access their data history anywhere.

By pushing the limits of connectivity, user-interface, and functionality, we did just that.

Touchscreen Features:

Capacitive Touch LCD Screen
Interchangeable Replaceable Sensors
User-selectable Sample Rate
Customizable Alarms
USB Flash Drive for Data Dowloand

Specifications:

Alarm Type Audible/Visual
Ambient Operating RH Conditions 0 to 95% RH non-condensing (Logger Only)
Ambient Operating Temperature Conditions 14 to 140F (-10 to 60C)
Approvals CE
Battery Backup 100+ Hours
Battery Type Rechargeable Backup Battery
Cable Details Up to 5 Probe Extensions (A898) can be used (50ft Total)
Calibration Options N100, N300, N400, N995
Data Capacity TBD
Dimensions 8.5 x 1.75 x 7″ (21 x 4.5 x 18cm)
Display Dimensions 8″ Diagonal
Display Type LCD Touchscreen
Display Update Rate Sample Interval Dependent (User Selectable)

Available sensors (must be ordered separately)

RTMP Specs:

Temperature Accuracy: +/-0.8F from 20 to 120F (+/-0.44C from -6.67 to 48.89C)
Temperature Range: Help0 to 160F (-18 to 71C)

________________________________________________

RTRH Specs:

Humidity Accuracy: +/-2% RH from 5 to 95% RH
Temperature Accuracy: +/-0.8F from 20 to 120F (+/-0.44C from -6.67 to 48.89C)
Temperature Range: Help 0 to 160F (-18 to 71C)

________________________________________________

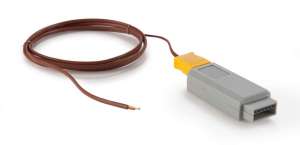

RKTC Specs:

Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F (+/-1C from -30 to 50C 2.1C)
Temperature Range: Help-300 to 2000F (-184 to 1093C)

_______________________________________________

RTHM Specs:

Temperature Accuracy: +/-0.9F from -58 to 68F (+/-0.5C from -50 to 20C)
Temperature Range: Help-58 to 158F (-50 to 70C)

______________________________________________

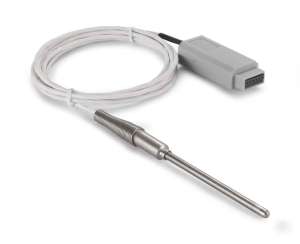

RRTD Specs:

Cable Length: 6ft (182cm)
Temperature Accuracy: +/-0.5F from -148 to 350F (+/-0.3C from -100 to 176C)
Temperature Range: Help-148 to 350F (-100 to 176C)

_____________________________________________
Download Type USB (must be formatted at FAT32)
Enclosure Case Front: Polycarbonate; Case Back and Pods; ABS
Included Accessories AC Adapter, Mounting Bracket and Kickstand

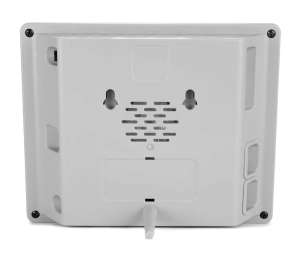

Mounting Options Mounting Bracket (Included with Touchscreen)
Power Cord 6 ft
Power Source 100-240 VAC 50/60Hz 12V=1A
Required Software DicksonWare VERSION TBD
Resolution LCD TBD
Sample Interval 30 seconds, 60 seconds, 90 seconds, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour
Sensor Type Replaceable Sensor (See Accessories for more information)
Unit Weight 1.45lbs
